Specification

  • Frame – Aluminum alloy 6061, internal cable routing, dropper post ready
  • Fork – SR Suntour NEX HLO 700, 63MM travel with hydraulic lockout
  • Frame Color – Matt Black / Viper Red / Chameleon
  • Decal – Water Decal
  • Shifter – Shimano Deore M4100, 1×10 Speed
  • Crank – Marlin G3 Alloy 2 piece HollowTech Crank, 104 BCT, 38T with narrow wide chain-ring
  • Cassette – Shimano Deore M4100 11-42T
  • Rear Derailleur – Shimano Deore M4120
  • Bottom Bracket – HollowTech Sealed BB
  • Chain – KMC X10 116L
  • Pedals – Alloy Pedals with reflectors
  • Saddle – PU Foam, Vinyl cover, with ABS protection plate
  • Seatpost – Alloy, 30.8×2.4Tx350mm with clamp
  • Handlebar – Alloy31.8mm, 20mm rise with 680mm(S,M,L) and 720mm(XL)
  • Headset – Neco thread-less integrated headset
  • Stem: Alloy Stem with 7°rise, 60mm length (S, M) / 80mm (L, XL)
  • Grips – Ergonomic lock-on grips
  • Rims – Double wall alloy rims 700C*40x32H with 3M reflective sticker
  • Wheel Size – 700C
  • Tire – KENDA K1083A 700C*40C
  • F/R Hub – Alloy Sealed Bearing hubs with alloy quick release
  • Spokes – High Carbon Steel
  • Brake Lever – Tektro M275
  • Brake Caliper – Tektro M275 F/R Hydraulic disc brakes
  • Rotor – Tektro, 160mm rotor disc, F/R
  • Rear kickstand
  • Tool Kit
  • Reflectors
  • Weight – 14 kilograms
  • Ideal Height – S(160-170cm), M(165-175cm), L(170-180cm), XL(180-190cm)
  • Max Weight – 125 kilograms (including bike weight)

Geometry & Size

A brief explanation of geometry is placed here. The geometry image below will stay / freeze.

S M L XL
Height 160-170 (cm)
63-67 (inch)
165-175 (cm)
65-69 (inch)
170-180 (cm)
67-71 (inch)
180-190 (cm)
71-75 (inch)
Seat Tube Length(A) 400 (cm)
15.75 (inch)
432 (cm)
16.97 (inch)
417 (cm)
18.5 (inch)
516 (cm)
20.31 (inch)
Seat Tube Angle (B) 74 (cm)
2.91 (inch)
74 (cm)
2.91 (inch)
74 (cm)
2.91 (inch)
74 (cm)
2.91 (inch)
Effective Seat Tube Angle (C) 74 (cm)
2.91 (inch)
74 (cm)
2.91 (inch)
74 (cm)
2.91 (inch)
74 (cm)
2.91 (inch)
Head Tube Length (D) 100 (cm)
3.94 (inch)
100 (cm)
3.94 (inch)
110 (cm)
4.33 (inch)
110 (cm)
4.33 (inch)
Head Tube Angle (E) 71 (cm)
2.8 (inch)
71 (cm)
2.8 (inch)
71 (cm)
2.8 (inch)
71 (cm)
2.8 (inch)
Effective Top Tube (F) 558 (cm)
21.97 (inch)
588 (cm)
11.34 (inch)
616 (cm)
24.25 (inch)
641 (cm)
25.24 (inch)
Bb Height (G) 280.1 (cm)
11.03 (inch)
280.1 (cm)
11.03 (inch)
280.1 (cm)
11.03 (inch)
280.1 (cm)
11.03 (inch)
Bb Offset (H) 70 (cm)
2.6 (inch)
70 (cm)
2.6 (inch)
70 (cm)
2.6 (inch)
70 (cm)
2.6 (inch)
Chainstay Length (I) 440 (cm)
17.32 (inch)
440 (cm)
17.32 (inch)
440 (cm)
17.32 (inch)
440 (cm)
17.32 (inch)
Chainstay Length (I) 1043.12 (cm)
41.07 (inch)
1073.12 (cm)
42.25 (inch)
1101.26 (cm)
43.36 (inch)
1126.26 (cm)
44.34 (inch)
Frame Reach (K) 385 (cm)
15.16 (inch)
415 (cm)
16.34 (inch)
440 (cm)
17.32 (inch)
465 (cm)
18.31 (inch)
Frame Stack (L) 602.7 (cm)
23.73 (inch)
602.7 (cm)
23.73 (inch)
612.2 (cm)
24.10 (inch)
612.2 (cm)
24.10 (inch)
Standover Height (M) 688.2 (cm)
27.09 (inch)
711.8 (cm)
28.02 (inch)
744.7 (cm)
29.32 (inch)
780.6 (cm)
30.73 (inch)
Hybrid-frame
Pick Your Size

S, M, ML, L, XL

Choose Color

Chameleon, Matt Black, Viper Red

Reviews

There are no reviews yet.

Be the first to review “Marlin GRS100”

Your email address will not be published. Required fields are marked

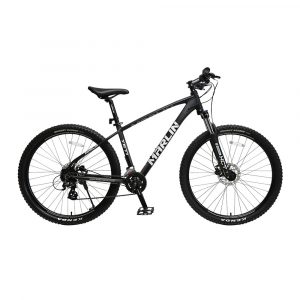

Marlin GRS100
